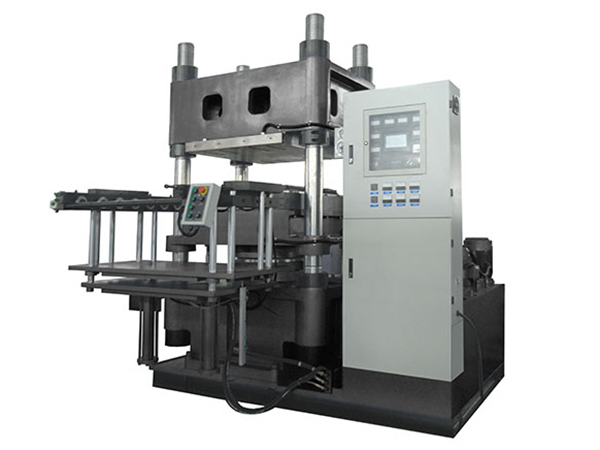

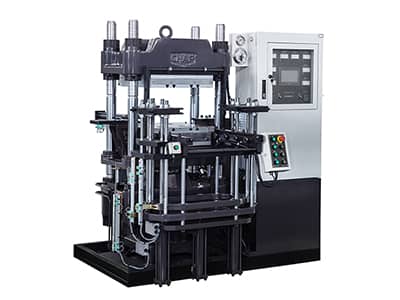

C-XLB-D850×1000/4000 Double layer plate rubber vulcanization machine heating plate size is 850×1000m and clamping force is 4000 KN.

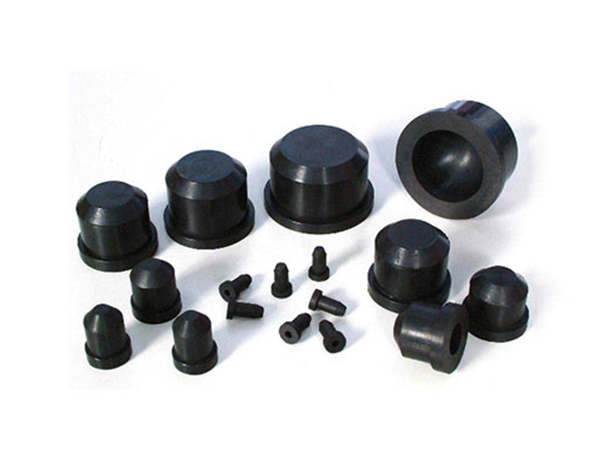

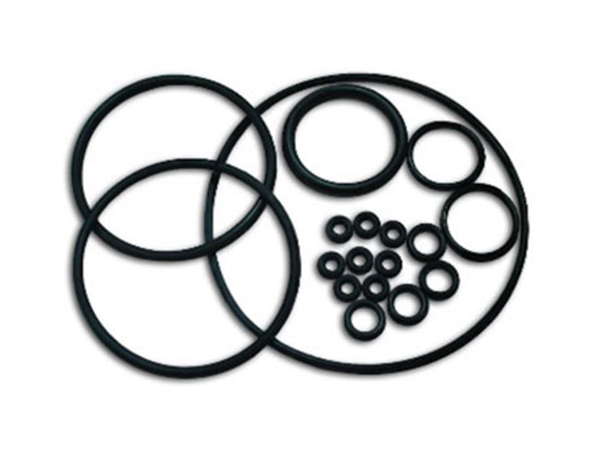

CHAP plate rubber vulcanizing machine is the main forming equipment for various rubber molded products and non-molded products. It is usually used for compression moulding of thermoset plastics, foam, resin, bakelite, thin metal and construction materials.
|Clamping force||4000 KN|
|Clamping stroke||400 mm|
|Rapid clamping speed||≥40 mm/s|
|Heating plate size||850mm×1000mm|
|Heating plate spacing||200~500 mm|
|Max operating temperature of heating plate||250 ℃|
|Number of working layer||1 layers|
|Max ejector force||120 KN|
|Motor power||7.5 KW|
|Heating power||34 KW|
|External dimension (LxWxH)||2300mm×3500mm×3000mm|
|Oil tank capacity||400 L|
CHAP is a professional manufacturer and supplier of plate rubber vulcanizing machine, based in China. Since our inception, we have been designing and producing all types of rubber machineries, such as vacuum rubber vulcanizing machine, custom rubber machine, tire valve vulcanizing machine, rubber injection molding machine, etc. Our products feature reliable quality, stable performance and competitive price. They are exported to Europe, South America, Southeast Asia, East Asia, Middle East and other regions. We welcome you to try our products, and we are certain that you will be satisfied with your purchase. For orders, please contact us at CHAP. We look forward to working with you.
