CRI Series C-frame Rubber Injection Molding Machine

Home » Products » Rubber Machinery » Rubber Injection Molding Machine » CRI Series C-frame Rubber Injection Molding Machine

Features
The CRI series C-frame rubber injection molding machine employs its compact, linear injection layout to realize system stability within the injection unit, effectively eliminating flaws in the finished rubber products.
The rubber injector makes use of its electro-hydraulic proportional variable pump technology to improve injection speed and also reduce energy consumption.

Applicable products
Suitable for the production of the various kinds of rubber products from natural rubber, synthetic rubber, regenerated rubber, etc. This equipment is ideal for the manufacturing of sealing belt joints or joint angles.

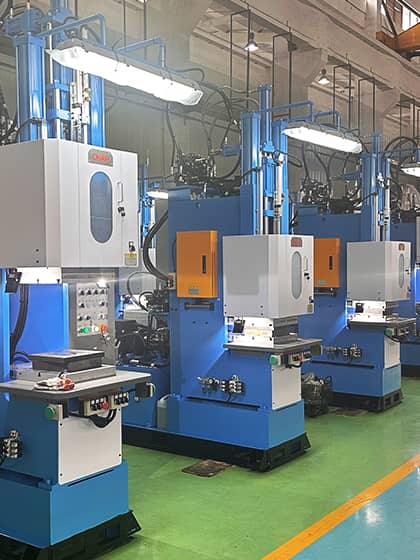

CRI/ES-300 C-frame Rubber Injection Molding Machine

Size CRI/ES-300
Clamping force 300 kN
Heating plate size 300×300mm
Heating plate spacing 350mm
Theoretical injection capacity 160cc
Screw diameter Φ30mm
Screw rotational speed 0~120 r/min
Plunger diameter Φ28mm
Injection pressure 170 MPa
Mold opening stroke 300mm
Motor power 7.5 kW
Heating power 4.8 kW
External dimension (L*W*H) 2000X1200X3500mm
Oil tank capacity 250L

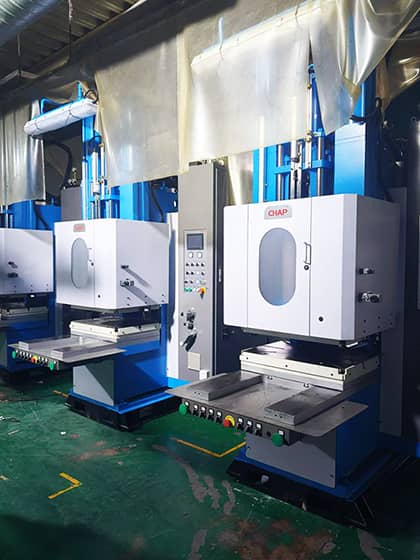

CRI/ES-500 C-frame Rubber Injection Molding Machine

Size CRI/ES-500
Clamping force 500 kN
Heating plate size 400×400mm
Heating plate spacing 380mm
Theoretical injection capacity 300cc
Screw diameter Φ30mm
Screw rotational speed 0~120 r/min
Plunger diameter Φ38mm
Injection pressure 170 MPa
Mold opening stroke 350mm
Motor power 11 kW
Heating power 9.5 kW
External dimension (L*W*H) 2300mmX1500mmX4000mm
Oil tank capacity 280 L

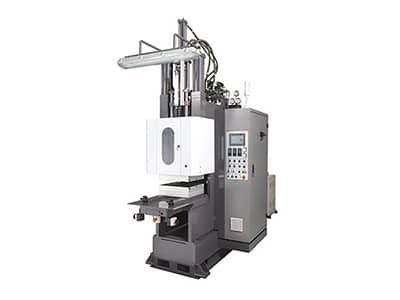

CRI-III-ES-300 C-frame Rubber Injection Molding Machine

Size CRI-III-ES-300
Clamping force 300 kN
Heating plate size 300×350 mm
Heating plate spacing 370 mm
Theoretical injection capacity 160 cc
Screw diameter Φ30mm
Screw rotational speed 0~120 r/min
Plunger diameter Φ32 mm
Injection pressure 170 MPa
Mold opening stroke 295 mm
Motor power 7.5 kW
Heating power 5.4 kW
External dimension (L*W*H) 2250mmX1200mmX3150mm
Oil tank capacity 280 L

CRI-III-ES-300 (with sliding device) C-frame Rubber Injection Molding Machine

Size CRI-III-ES-300 (with sliding device)
Clamping force 300 kN
Heating plate size 300×350 mm
Heating plate spacing 370 mm
Theoretical injection capacity 160 cc
Screw diameter Φ30 mm
Screw rotational speed 0~120 r/min
Plunger diameter Φ32 mm
Injection pressure 170 MPa
Mold opening stroke 295 mm
Motor power 7.5 kW
Heating power 7.2 kW
External dimension (L*W*H) 2250mmX1200mmX3150mm
Oil tank capacity 280 L
Feedback Form
Other Products

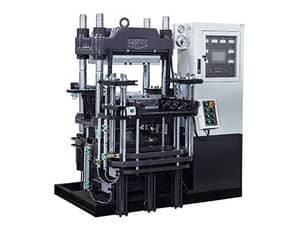

  • Vacuum Rubber Vulcanizing Machine It uses a large screen LCD to show parameters, resulting in clear visual effects and ease of operation.
    Fast mould opening and closing helps our vacuum rubber vulcanizing machine achieve high .
  • Rubber Injection Molding Machine The heating plate uses cast aluminum for overall heating and computer PID control to ensure temperature precision. The injection, pre-plasticizing cylinder adopts hot oil heating method, which achieves even heating.

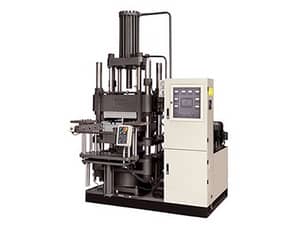

  • Rubber Transfer Molding Machine CHAP rubber transfer molding machine adopts imported high pressure pump and middle-high pressure vane pump combination, controlled by a proportional pressure flow composite valve..

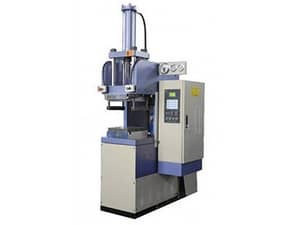

  • C-Frame Transfer type molding machine The clamping cylinder clamps mould first, and then the injection cylinder presses rubber material into the mould cavity uniformly. This helps ensure the dimension precision and stable performance.
