Single Layer Plate Rubber Vulcanization Machine

Home » Products » Rubber Machinery » Plate Rubber Vulcanizing Machine » C-XLB-D500X500/1000Ⅲ Single Layer Plate Rubber Vulcanization Machine

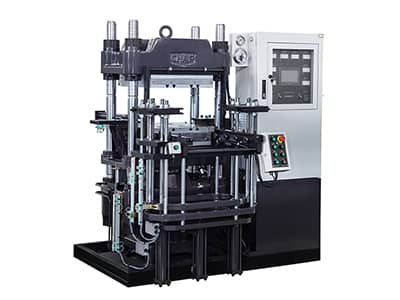

Single Layer Plate Rubber Vulcanization Machine
Feedback Form

Reliable and efficient, CHAP single layer plate rubber vulcanization machine is extensively used for compression moulding of thermoset plastics, foam, resin, bakelite, thin metal and building materials.

Technical Specifications of Single Layer Plate Rubber Vulcanization Machine

Clamping force 1000 KN
Clamping stroke 300 mm
Rapid clamping speed ≥50 mm/s
Heating plate size 500mm×500mm
Heating plate spacing 200~400 mm
Max operating temperature of heating plate 250 ℃
Number of working layer 1 layers
Spacing /
Max ejector force 60 KN
Motor power 4 KW
Heating power 13.8 KW
External dimension (LxWxH) 1790mm×2100mm×1775mm
Oil tank capacity 200 L

Beginning its business in 2004, CHAP is one of plate rubber vulcanizing machine manufacturers and suppliers. We can produce various rubber machineries, such as vacuum rubber vulcanizing machine, C-Frame Transfer type molding machine, thermoset plastic transfer molding machine, custom rubber machine, and more. Located in Ningbo City, we are surrounded by transportation facilities like highways, airports, and sea ports. This allows us to conveniently transport our products and effectively reduce our customers' freight charges. If you are interested in our products, please do not hesitate to contact us. We look forward to doing business with you.
