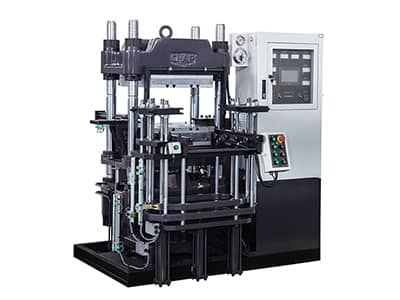

CHAP plate rubber vulcanizing machine is the main forming equipment for various rubber molded products and non-molded products. Typically, it is suitable for compression moulding of thermoset plastics, foam, resin, bakelite, thin metal and building materials.
|Clamping force||12000 KN|
|Clamping stroke||500 mm|
|Rapid clamping speed||≥50 mm/s|
|Heating plate size||1150mm×1400mm|
|Heating plate spacing||400~600 mm|
|Max operating temperature of heating plate||250 ℃|
|Number of working layer||1 layers|
|Max ejector force||/|
|Motor power||(18.5+18.5) KW|
|Heating power||68 KW|
|External dimension (LxWxH)||6200mm×4800mm×4000mm|
|Oil tank capacity||2000 L|
As an experienced plate rubber vulcanizing machine manufacturer in China, we at CHAP are able to produce tire valve vulcanizing machine, custom rubber machine, vacuum rubber vulcanizing machine, and so on. In addition, we can manufacture our rubber machinery according to customers' specific requirements. We are committed to offering high quality products and thoughtful customer services, and we are certified by ISO9001. As a result of superior quality, economical prices and good after-sales service, our EC certified products are highly sought after by customers from Europe, South America, Southeast Asia, East Asia, and other regions. If you have any need, please contact us directly. We look forward to cooperating with you.
