Product introduction

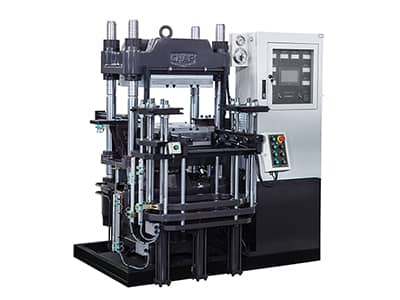

C-XLB-D650x700/3000 Double layer plate rubber vulcanization machine heating plate size is 650×700m and clamping force is 3000 KN.
Applications
Advantages such as simple structure, high pressure and great efficiency have made CHAP plate rubber vulcanizing machine increasingly used for compression moulding of thermoset plastics, foam, resin, bakelite, thin metal and building materials.
Item Parameters | C-XLB-D650x700/3000 |
Clamping force | 3000 kN |
Clamping Stroke | 350 mm |
Rapid clamping speed | ≥40 mm/s |
Heating Plate Size | 650×700 mm×mm |
Heating plate spacing | 300~500 mm |
Max Temperature | 250°C |
Number of working layers | 1 layers |
Max ejector force | 60 kN |
Motor Power | 7.5 kW |
Heating Power | 23.7 kW |
External Dimension (L×W×H) | 2100mm×2700mm×2400mm |
Oil Tank Capacity | 350 L |
Founded in 2004, CHAP is a professional plate rubber vulcanizing machine manufacturer located in China. We can produce various rubber machineries, such as vacuum rubber vulcanizing machine, C-Frame Transfer type molding machine, tire valve vulcanizing machine, custom rubber machine, and more. As a result of superior quality, economical prices and good after-sales service, our EC certified products are highly sought after by customers from Europe, South America, Southeast Asia, East Asia, and other regions. If you buy these products from our company, we can also provide you with convenient transportation, especially sea and air transportation. We sincerely hope to cooperate with you!
