C-SCP Special Press for Brake Pads

Home » Products » Rubber Machinery » Plate Rubber Vulcanizing Machine » C-SCP Special Press for Brake Pads

The C-SCP special press for brake pads is designed for the production of high quality composition thermoset friction materials. The machine’s optimized hydraulic system greatly increases production efficiency and capacity while also extending the service life compared to similar products.
The machine also features outstanding precision thanks to its PLC enabled automation, allowing for each process to be preset and displayed on a screen for fast and easy monitoring and adjustment. The system can also realize manual and semi-automatic operation modes.

Applicable products
This press is widely installed in automotive component manufacturing facilities.

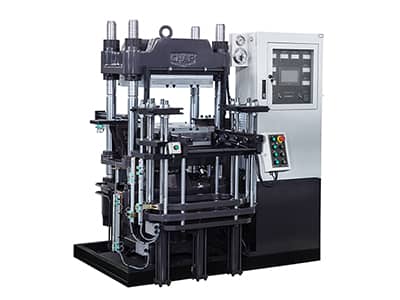

C-SCP-D550×600/2000 Special Press for Brake Pads

Item Parameters C-SCP-D550×600/2000
Clamping force 2000 kN
Clamping Stroke 300mm
Rapid clamping speed ≥50(mm/s
Heating Plate Size 550×600 mm×mm
Heating plate spacing 180-480 mm
Max Temperature 250°C
Core Stroke 130 mm
Core max.ejector force 60 KN
Motor Power 5.5 kW
Heating Power 18.3 kW
External Dimension(L×W×H) 1900mm×1250mm×2100mm
Oil Tank Capacity 250 L

C-SCP-D650×700/3000 Special Press for Brake Pads

Item Parameters C-SCP-D650×700/3000
Clamping force 3000 kN
Clamping Stroke 350 mm
Rapid clamping speed ≥40 mm/s
Heating Plate Size 650×700 mm×mm
Heating plate spacing 300-500 mm
Max Temperature 250°C
Core Stroke 130 mm
Core max.ejector force 60 KN
Motor Power 7.5 kW
Heating Power 23.7 kW
External Dimension(L×W×H) 2100mm×1250mm×2400mm
Oil Tank Capacity 350 L
