Applications
CHAP rubber transfer molding machine is extensively used for producing difficult-to-mold rubber products, like those with metal insert, complex shape, big cross section and thick wall.

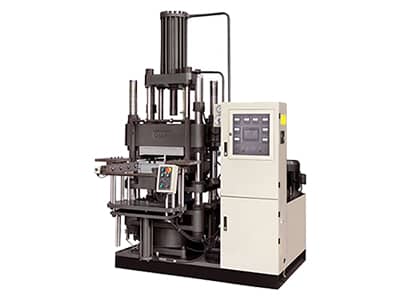

C-XZB-D1150×1400/12000 | |
Clamping force | 12000 KN |
Clamping stroke | 500 mm |
Rapid clamping speed | ≥40 mm/s |
Heating plate size | 1150mm×1400mm |
Heating plate spacing | 500~600 mm |
Max operating temperature of heating plate | 250 ℃ |
Material cylinder spec | ¢220mm×1050mm |
Injection stroke | 1390 mm |
Injection pressure | 90 Mpa |
Ejector stroke | / |
Max ejector force | / |
Motor power | (18.5+18.5) KW |
Heating power | 68 KW |
External dimension (LxWxH) | 6200mm×4800mm×(7380~7480)mm |
Oil tank capacity | 2000 L |
As a specialized rubber transfer molding machine producer and provider, we also offer vacuum rubber vulcanizing machine, C-Frame Transfer type molding machine, custom rubber machine, and plate rubber vulcanizing machine, etc. To keep and retain more customers, we are committed to offering high quality products at competitive prices. To illustrate, we ensure only qualified materials are used, and we also conduct rigorous quality controls on each manufacturing step. Due to our dedication to quality, our rubber machinery is now CE certified. If you have any rubber machineries need, please contact us immediately. We look forward to working with you.
