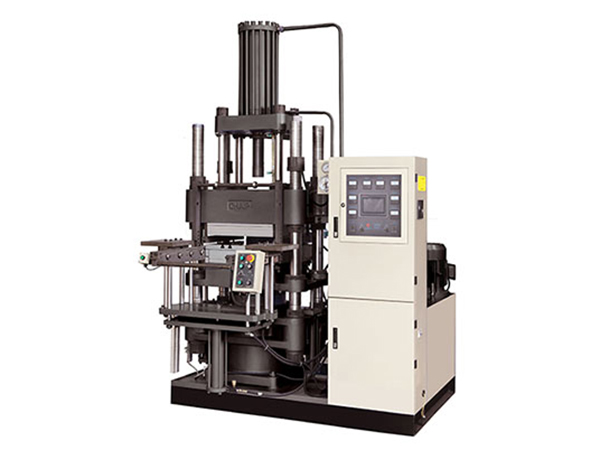

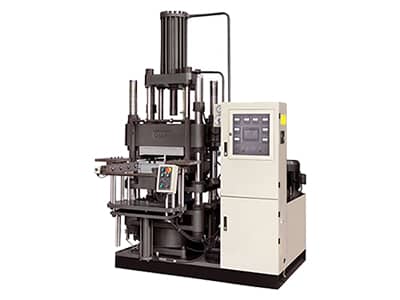

C-XZB-D550x550/1000 | |
Clamping force | 1000 KN |
Clamping stroke | 300 mm |
Rapid clamping speed | ≥50 mm/s |
Heating plate size | 550mm×550mm |
Heating plate spacing | 200~400 mm |
Max operating temperature of heating plate | 250 ℃ |
Material cylinder spec | ¢80mm×255mm |
Injection stroke | 380 mm |
Injection pressure | 100 Mpa |
Ejector stroke | 250 mm |
Max ejector force | 60 KN |
Motor power | 5.5 KW |
Heating power | 13.65 KW |
External dimension (LxWxH) | 1660mm×2100mm×(2800~3000)mm |
Oil tank capacity | 270 L |
Thank you for visiting our website. As an experienced rubber transfer molding machine manufacturer in China, we at CHAP are able to produce plate rubber vulcanizing machine, tire valve vulcanizing machine, custom rubber machine, vacuum rubber vulcanizing machine, and more. In addition, we can manufacture our rubber machinery according to customers' specific requirements. We are committed to offering high quality products and thoughtful customer services, and we are certified by ISO9001. Located in Ningbo City, Zhejiang Province, we have very convenient sea, land and air transportation, thus enabling us to deliver our products very promptly and very cheaply. Please contact us for more product information. We are looking forward to serving you.
