Applications

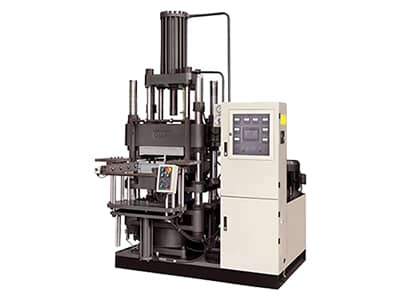

CHAP rubber transfer molding machine is ideally suited for producing difficult-to-mold rubber products, like those with metal insert, complex shape, big cross section and thick wall.
C-XZB-D650×700/3000 | |
Clamping force | 3000 KN |
Clamping stroke | 350 mm |
Rapid clamping speed | ≥40 mm/s |
Heating plate size | 650mm×700mm |
Heating plate spacing | 300~500 mm |
Max operating temperature of heating plate | 250 ℃ |
Material cylinder spec | ¢110mm×355mm |
Injection stroke | 580 mm |
Injection pressure | 100 Mpa |
Ejector stroke | 350mm |
Max ejector force | 60 KN |
Motor power | 5.5 KW |
Heating power | 19 KW |
External dimension (LxWxH) | 2100mm×2700mm×(3650~3850)mm |
Oil tank capacity | 350 L |
Founded in 2004, CHAP is a professional rubber transfer molding machine manufacturer located in China. We can produce various rubber machineries, such as vacuum rubber vulcanizing machine, plate rubber vulcanizing machine, tire valve vulcanizing machine, custom rubber machine, and more. As a result of superior quality, economical prices and good after-sales service, our EC certified products are highly sought after by customers from Europe, South America, Southeast Asia, East Asia, and other regions. If you buy these products from our company, we can also provide you with convenient transportation, especially sea and air transportation. We sincerely hope to cooperate with you!
