Applications

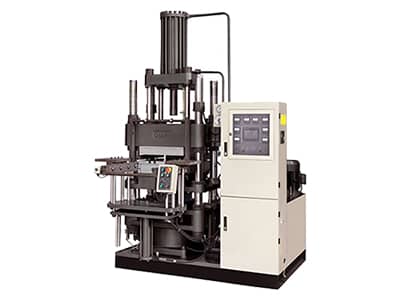

CHAP rubber transfer molding machine is great for producing difficult-to-mold rubber products, like those with metal insert, complex shape, big cross section and thick wall.
C-XZB-D1000×1200/6000 | |
Clamping force | 6000 KN |
Clamping stroke | 450 mm |
Rapid clamping speed | ≥40 mm/s |
Heating plate size | 1000mm×1200mm |
Heating plate spacing | 400~500 mm |
Max operating temperature of heating plate | 250 ℃ |
Material cylinder spec | ¢160mm×780mm |
Injection stroke | 1060 mm |
Injection pressure | 90 Mpa |
Ejector stroke | / |
Max ejector force | / |
Motor power | (11+11) KW |
Heating power | 52 KW |
External dimension (LxWxH) | 2700mm×4100mm×(5780~5880)mm |
Oil tank capacity | 1000 L |
CHAP is a major manufacturer and supplier of rubber transfer molding machine in China. Our vacuum rubber vulcanizing machine, custom rubber machine, tire valve vulcanizing machine, plate rubber vulcanizing machine, etc. are produced in strict compliance with the international standard. In addition, our company is located in Ningbo City which provides us with convenient transportation. In addition, the abundant raw materials and labor forces here can help largely reduce our production costs. Therefore, we can provide clients with quality products at competitive prices. If you are interested in our rubber machineries, please do not hesitate to contact us. We will offer quality products and services to you. We look forward to cooperating with you.
