Applications

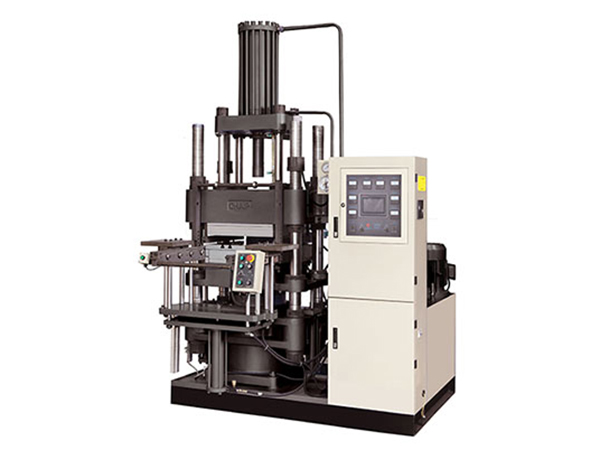

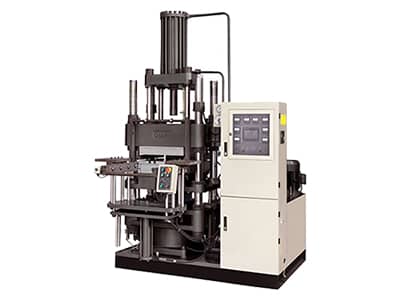

With compact structure and high level of automation, CHAP rubber transfer molding machine is widely used for producing rubber products with metal insert, complex shape, big cross section and thick wall.
C-XZB-D850×1000/4000 | |
Clamping force | 4000 KN |
Clamping stroke | 400 mm |
Rapid clamping speed | ≥40 mm/s |
Heating plate size | 850mm×1000mm |
Heating plate spacing | 400~500 mm |
Max operating temperature of heating plate | 250 ℃ |
Material cylinder spec | ¢130mm×445mm |
Injection stroke | 680 mm |
Injection pressure | 80 Mpa |
Ejector stroke | 400 mm |
Max ejector force | 120 KN |
Motor power | (7.5+4) KW |
Heating power | 44.4 KW |
External dimension (LxWxH) | 2500mm×3500mm×(4800~5200)mm |
Oil tank capacity | 500 L |
CHAP is a major manufacturer and supplier of rubber transfer molding machine in China. Our company is located in Ningbo City which provides us with convenient transportation. Therefore, we can deliver our plate rubber vulcanizing machine, thermoset plastic transfer molding machine, custom rubber machine, etc. to you in time. These products are manufactured in conformity with the standard of ISO, so our worldwide customers can feel secure in inquiring and ordering. In addition, we establish long term cooperative relationship with material suppliers, which helps reduce our material purchasing cost. Therefore, we can provide rubber machinery at reasonable prices. If you have any need, please contact us directly. We look forward to cooperating with you.
