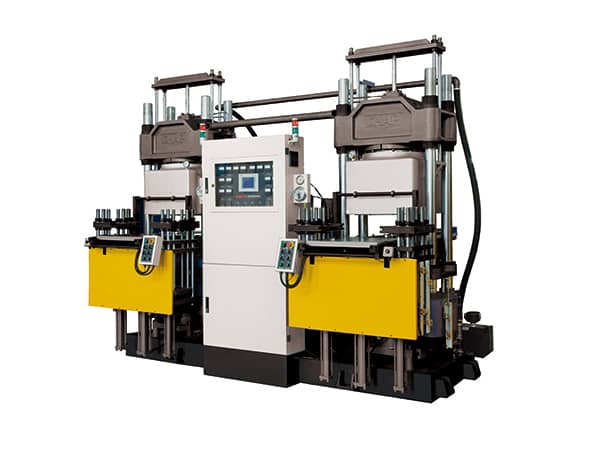

XLB/DZ-D700×720 Vacuum Vulcanizing Press for Rubber
- Model: XLB/DZ-D700×720
- Heating Plate Size: 700 mm×720 mm
- Clamping Force: 3500 kN
CHAP vacuum vulcanizing press for rubber is widely used for producing rubber molded products that are of complex shapes and difficult to mold as well as rubber products that are easy to produce bubble.
Technical Specifications of Vacuum Vulcanizing Press for Rubber
|
|
|
| Clamping force | 3500 KN |
| Clamping stroke | 400 mm |
| Rapid clamping speed | ≥40 mm/s |
| Heating plate size | 700 mm×720 mm |
| Heating plate spacing | 250~450 mm |
| Max temperature | 250 ℃ |
| Vacuum cover stroke | 250 mm |
| Max mould thickness | 200 mm |
| Ejector stroke | 350 mm |
| Max ejector force | 60 KN |
| Motor power | (7.5+7.5) KW |
| Heating power | (24.6+24.6) kW |
| External dimension (LxWxH) | 4200mm×3100mm×(3020~3270)mm |
| Oil tank capacity | 500 L |
