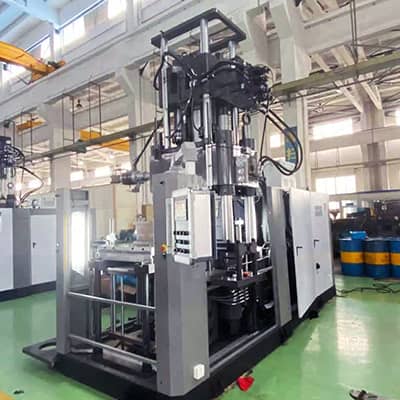

CRI 5000KN Rubber Injection Molding Machine
- Model: CRI-5000
- Heating Plate Size: 850 mm×900 mm
- Clamping Force: 5000 KN
Compact and efficient, CHAP rubber injection molding machine is particularly suitable for producing rubber products that are difficult to mold, like those with complex shapes.
Features
- The CRI-5000 rubber injection molding machine features two operation modes: manual and semi-automatic
- This rubber injection machine is equipped with a fully enclosed security screen and an infrared light curtain protection device, thus giving the machine a higher level of safety during operation.
- This machine's preformed plastic injection barrel is heated with hot oil, which can better control machine's temperature.
- This molding machine features a four-cylinder parallel injection structure which improves the balance during the rubber injection process, and cuts down on the longitudinal space of the injection component. As a result, the injection plunger is easy to remove.
- This machine is very compact in structure, which significantly improves its adaptability to different applications.
Technical Specifications of Rubber Injection Molding Machine
| Items | |
| Clamping force | 5000KN |
| Heating plate size | 850 mm×900 mm |
| Heating plate spacing | 550~650 mm |
| Theoretical injection capacity | 8000cc |
| Screw diameter | Φ60 |
| Screw rotational speed | 0~120 r/min |
| Max. temperature | 250 °C |
| Plunger diameter | Φ115 |
| Injection pressure | 170Mpa |
| Mould opening stroke | 500 mm |
| Motor power | 30kW |
| Heating power | 44.4kW |
| External dimension(L×W×H) | 4600mm×3000mm×5500mm |
| Oil tank capacity | 550L |
