Tire Valve Vulcanizing Press

Home » Products » Rubber Machinery » Tire Valve Vulcanizing Machine » QMX-D594X600_2000 Tire Valve Set Vulcanizing Press

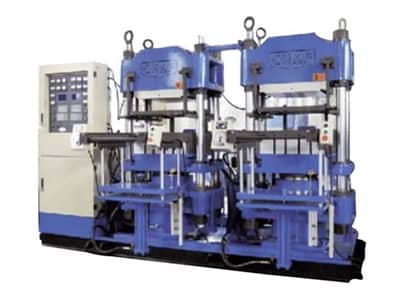

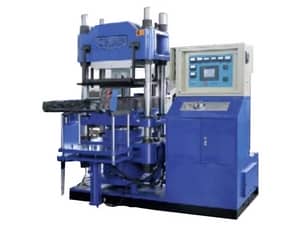

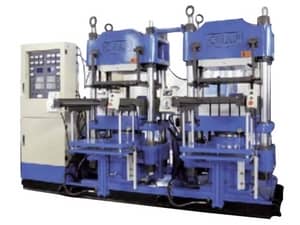

Tire Valve Set Vulcanizing Press
Feedback Form

Applications
CHAP tire valve set vulcanizing press is an economical and eco friendly rubber molding machine specially designed for tire valve core manufacturers.

Technical Specifications of Tire Valve Vulcanizing Press

QMX-D594×600/2000(Set)
Clamping force 2000 KN
Clamping stroke 300 mm
Rapid clamping speed ≥50 mm/s
Heating plate size 594 mm×600 mm
Heating plate spacing 400 mm
Max temperature 250 ℃
Ejector stroke 300 mm
Max ejector force 60 KN
Motor power 5.5 KW
Heating power (13.65+13.65) KW
External dimension (LxWxH) 3500mm×2500mm×2200mm
Oil tank capacity 360 L

Beginning its business in 2004, CHAP is one of tire valve vulcanizing machine manufacturers and suppliers. We can produce various rubber machineries, such as vacuum rubber vulcanizing machine, C-Frame Transfer type molding machine, thermoset plastic transfer molding machine, custom rubber machine, and more. Located in Ningbo City, we are surrounded by transportation facilities like highways, airports, and sea ports. This allows us to conveniently transport our products and effectively reduce our customers' freight charges. If you are interested in our products, please do not hesitate to contact us. We look forward to doing business with you.

Feedback Form
Other Products
  • Vacuum Rubber Vulcanizing Machine It uses a large screen LCD to show parameters, resulting in clear visual effects and ease of operation.
    Fast mould opening and closing helps our vacuum rubber vulcanizing machine achieve high .

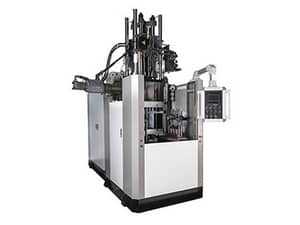

  • Rubber Injection Molding Machine The heating plate uses cast aluminum for overall heating and computer PID control to ensure temperature precision. The injection, pre-plasticizing cylinder adopts hot oil heating method, which achieves even heating.
  • Rubber Transfer Molding Machine CHAP rubber transfer molding machine adopts imported high pressure pump and middle-high pressure vane pump combination, controlled by a proportional pressure flow composite valve..

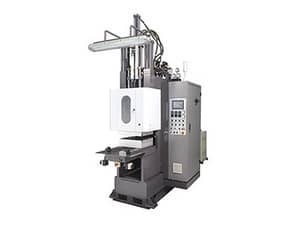

  • C-Frame Transfer type molding machine The clamping cylinder clamps mould first, and then the injection cylinder presses rubber material into the mould cavity uniformly. This helps ensure the dimension precision and stable performance.
