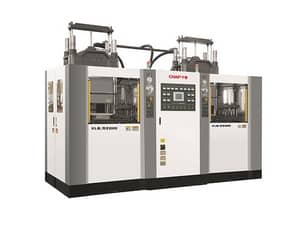

C-XLB-D540×600 2500KN Vacuum Vulcanizing Press for Rubber
- Model: C-XLB-D540×600
- Heating Plate Size: 540 mm×600 mm
- Clamping Force: 2500 KN
CHAP vacuum vulcanizing press for rubber is ideally suited for producing rubber molded products that are of complex shapes and difficult to mold as well as rubber products that are easy to produce bubble.
- The vertical rubber molding machine has two operation modes for customers to choose from based on their application needs: manual or semi-automatic.
- This machine is equipped with a fully enclosed security screen and infrared light curtain protection device, thus ensuring a higher level of safety during operation.
- This molding machine uses an electric hydraulic proportional hydraulic system with double power, double oil pumps and a double motor in order to carry out independent operation.
|
|
|
|
| Clamping force | 2500 KN | 2500 KN |
| Clamping stroke | 300 mm | 300 mm |
| Rapid clamping speed | ≥50 mm/s | ≥50 mm/s |
| Heating plate size | 540 mm×600 mm | 540 mm×600 mm |
| Heating plate spacing | 300~400 mm | 300~400 mm |
| Max operating temperature of heating plate | 250 ℃ | 250 ℃ |
| Vacuum cover stroke | 250 mm | 250 mm |
| Max mould thickness | 240 mm | 240 mm |
| Ejector stroke | 300 mm | 300 mm |
| Max ejector force | 60 KN | 60 KN |
| Motor power | 5.5 KW | (5.5+5.5) KW |
| Heating power | 18.3KW | (18.3+18.3)KW |
| External dimension (LxWxH) | 2100mm×2550× (2800~2900)mm |
3800mm×2550× (2800~2900)mm |
| Oil tank capacity | 250 L | 400 L |
The operating cycle of a vacuum vulcanizing press, or vacuum compression molding machine, can be summarized as follows:
Loading — mold closing — vacuum evacuation — pressurizing and heating — curing / vulcanization — mold opening — ejection
For vacuum compression molding, after the measured material is put into the mold, the vacuum hood creates a low-pressure environment surrounding the mold while the mold is being closed, helping remove trapped air inside the mold. Then the hydraulic system provides pressure while the heated platen continuously transfers heat to the mold. After the vulcanization/curing process under set temperature and time, the mold opens and the ejector assists in part removal.
With 2,500 kN clamping force and 540×600mm heated platen, the vacuum compression molding machine can be used for medium-sized rubber moldings with complex geometries or designs prone to air entrainment.
Examples: O-rings, rubber seals, rubber gaskets, rubber diaphragms, vibration dampers, rubber bushings, dust boots / rubber boots, rubber pads and some rubber-to-metal bonded parts
The suitability for a specific product depends on rubber compound, part dimensions, mold dimensions, mold thickness, cavity count, projected molding area and curing process.
The vacuum compression molding machine uses an electro-hydraulic proportional control system， with dual power units, dual hydraulic pumps, and dual motors, enabling hydraulic pressure control during mold closing, pressurizing and vulcanization.
With 2,500 kN clamping force, the vacuum compression molding machine maintains mold closure and set pressure during the molding process.
The molding pressure should be set according to the rubber compound, projected mold area, product geometry, and curing process.
