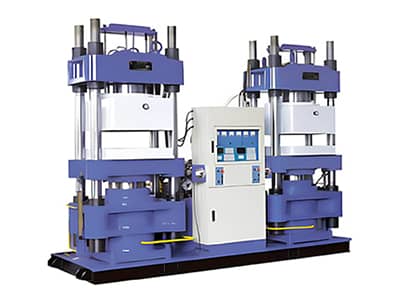

Butyl Rubber Stopper Vacuum Vulcanizing Press
- Model: XLB-PS700×760
- Heating Plate Size: 700mm×760mm
- Clamping Force: 3500KN
Technical Specifications of Butyl Rubber Stopper Vacuum Vulcanizing Press
| |
|
| Clamping force | 3500 KN |
| Clamping stroke | 400 mm |
| Rapid clamping speed | ≥40 mm/s |
| Heating plate size | 700 mm×760 mm |
| Heating plate spacing | 350~550 mm |
| Max operating temperature of heating plate | 250 ℃ |
| Injection stroke | 618 mm |
| Injection pressure | 95 MPa |
| Vacuum cover stroke | 250 mm |
| Max mould thickness | 240 mm |
| Motor power | (5.5+5.5) KW |
| Heating power | (22.8+22.8) KW |
| External dimension (LxWxH) | 4010mm×2010mm×(2800~3350)mm |
| Oil tank capacity | 500 L |
CHAP is a primary butyl rubber stopper vacuum vulcanizing press manufacturer based in China. We mainly produce vacuum vulcanizing press for rubber, transfer type molding press for rubber, plastic injection molding machine and rotary table injection molding machine.
Our products are EC and CQC certified, and they are well accepted by customers from Europe, South America, Southeast Asia, East Asia, Middle East, and other regions. In addition, our location in Ningbo City, provides us with easy access to convenient transportation, which reduces our transportation cost, enabling us to offer quality products at economical prices. If you are in need of our products, please Contact Us. Our staff is ready and waiting to serve you.
