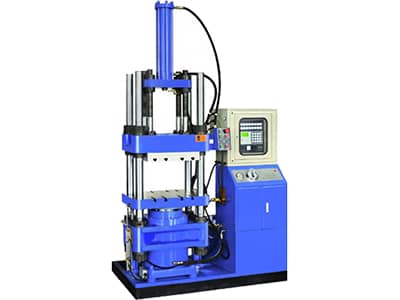

Thermoset Plastic Transfer Molding Machine

Home » Products » Rubber Machinery » Thermoset Plastic Transfer Molding Machine » YJ-2000 Thermoset Plastic Transfer Molding Machine
Thermoset Plastic Transfer Molding Machine
Feedback Form

Applications
Having the advantages of high efficiency, high reliability and low noise, CHAP thermoset plastic transfer molding machine is widely used for plastic encapsulation of motors, electrical elements, pneumatic elements, electromagnet, etc.

Technical Specifications of Thermoset Plastic Transfer Molding Machine

YJ-2000
Clamping force 2000 KN
Clamping stroke 300 mm
Mould opening&closing speed ≥50 mm/s
Work desk effective dimension 580mm×600mm
Platen spacing 350~800mm
Injection stroke 500 mm
Injection force 400 KN
Injection device adjustable range 190~500 mm
Injection pole dia 100 mm
Motor power 5.5 KW
Heating power Same to mould heating power
External dimension (LxWxH) 1770mm×1255mm×(2550~3300)mm
Oil tank capacity 270 L

CHAP is a major manufacturer and supplier of thermoset plastic transfer molding machine in China. Our company is located in Ningbo City which provides us with convenient transportation. Therefore, we can deliver our vacuum rubber vulcanizing machine, C-Frame Transfer type molding machine, custom rubber machine, etc. to you in time. These products are manufactured in conformity with the standard of ISO, so our worldwide customers can feel secure in inquiring and ordering. In addition, we establish long term cooperative relationship with material suppliers, which helps reduce our material purchasing cost. Therefore, we can provide rubber machinery at reasonable prices. If you have any need, please contact us directly. We look forward to cooperating with you.
