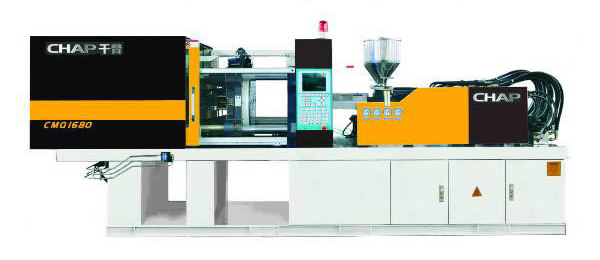

CMQ1680 Rotary Table Injection Molding Machine (for narrow and flat mold)

This product has been discontinued and removed from our shelves.
Technical Specifications of Rotary Table Injection Molding Machine
Description Unit CMQ1680
Injection Unit Injection 1 Injection 2
Screw No / A B C A B C
Screw diameter mm 10 32 36 28 32 36
Screw length-diameter ratio L/D 24 21 18.7 24 21 18.7
Theoretical injection capacity cm3 96 125 159 96 125 159
Injection weight(PS) g 87 114 145 87 114 145
Injection pressure Mpa 235 180 142 235 180 142
Screw rotational speed rpm 0~220 0~220
Clamping Unit
Clamping force KN 1600
Moving mould distance mm 400
Tie bar spacing mm 465×430
Rotary diameter mm ￠650
Max. mould thickness mm 375
Min. mould thickness mm 125
Ejector stroke mm 130
Ejector force KN 33
Ejector bar amount PC 2
Distance between mould positioning centers mm 290
Other Unit
Max. pump pressure MPa 16
Pump motor power KW 18.5
Heating power KW 5.9+5.9
External dimension(L×W×H) mm 5100×1700×1873
Machine weight kg 7500
Material cylinder capacity Liter 25+25
Oil tank capacity Liter 305

As an experienced rotary table injection molding machine manufacturer in China, we at CHAP are able to produce sandwich co-injection molding machine, hydraulic two-platen plastic injection molding machine, and more. In addition, we can manufacture our plastic injection molding machine according to customers' specific requirements. We are committed to offering high quality products and thoughtful customer services, and we are certified by ISO9001. Located in Ningbo City, Zhejiang Province, we have very convenient sea, land and air transportation, thus enabling us to deliver our products very promptly and very cheaply. Please contact us for more product information. We are looking forward to serving you.
